Nema 23 Planetary Gearbox Gear Ratio 10:1 Backlash < 3 arc-min 4000RPM Gear Head Speed Reducer for 6.35mm and 8mm Shaft Nema23 Stepper Motor, Reduction Box for CNC Robots

★★★★★ 4.8 62 reviews

$99.99
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by www.closetowine.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$99.99
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives May 26
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by www.closetowine.com
Free 30-day returns Details

Product details

Management number 221217635 Release Date 2026/05/03 List Price $40.00 Model Number 221217635
Category

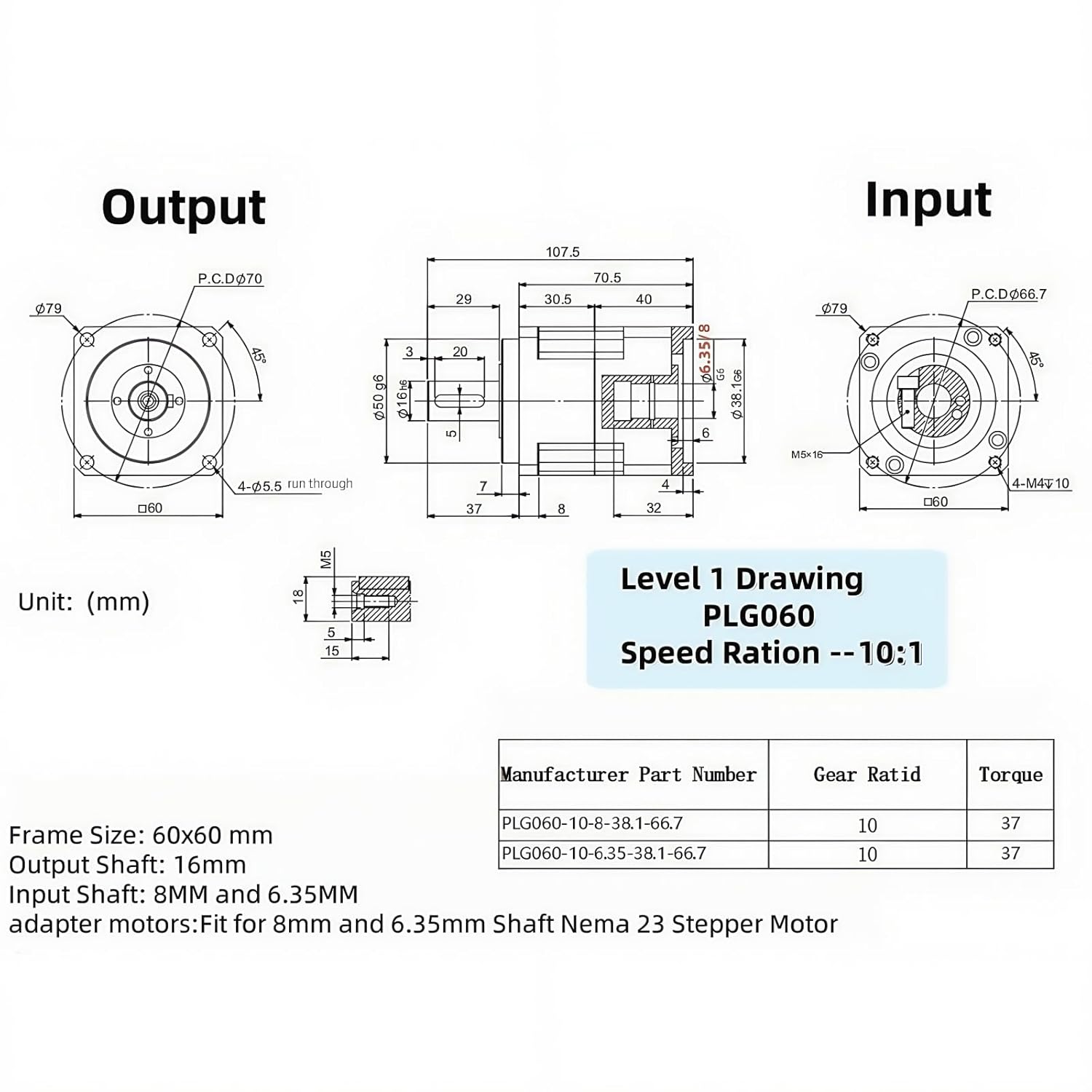

  • Planetary Gearbox Frame Size: 60x60 mm(2.36 inch); adapter motors: Fit for 6.35mm and 8mm Shaft stepper motor, output shaft: 14mm; input shaft: 6.35mm(0.25 inch) and 8mm(0.31 inch). Speed Reducer Body length: 70.5mm(2.78 inch).
  • Gear Ratio: 10:1, Maximum radial force/torque: 1530N; Maximum axial force/torque: 630N. It's a good solution in applications that need low rotation speeds and/or lots of huge torque.
  • Nema 23 Planetary Gearboxes Backlash Precision: <= 3 Arcmin, Full load efficiency: 97%, max input speed:8000rpm, rated input speed: 4000 rpm, Torsion rigidity: 6Nm/arcmin. Lower noise: less than 63dB.
  • Applications: Compact design, flexible and easy installation, space-saving. This planetary gear is mainly used to reduce speed and increase holding torque, widely applied in CNC machine and robots, such as engraving machine, milling machine, lathe, work bench, grinding machine etc.
  • Included:1pc x Planetary Gearbo, 4pc x Screws, 1pc x 8mm to 6.35mm shaft adapter - the function of the shaft adapter is to modifies the input bore of the gearbox. The standard 8mm input bore fits a nema23 stepper motor with a 8mm output shaft, when the 6.35mm adapter is installed, it accommodates a nema 23 stepper motor with a 6.35mm output shaft.
Brand Name TOSEASTARS
Part Number PLG060-10-6.35/8-38.1-66.7
Manufacturer TOSEASTARS
Material Type Alloy Steel
Included Components Planetary Gearbox
